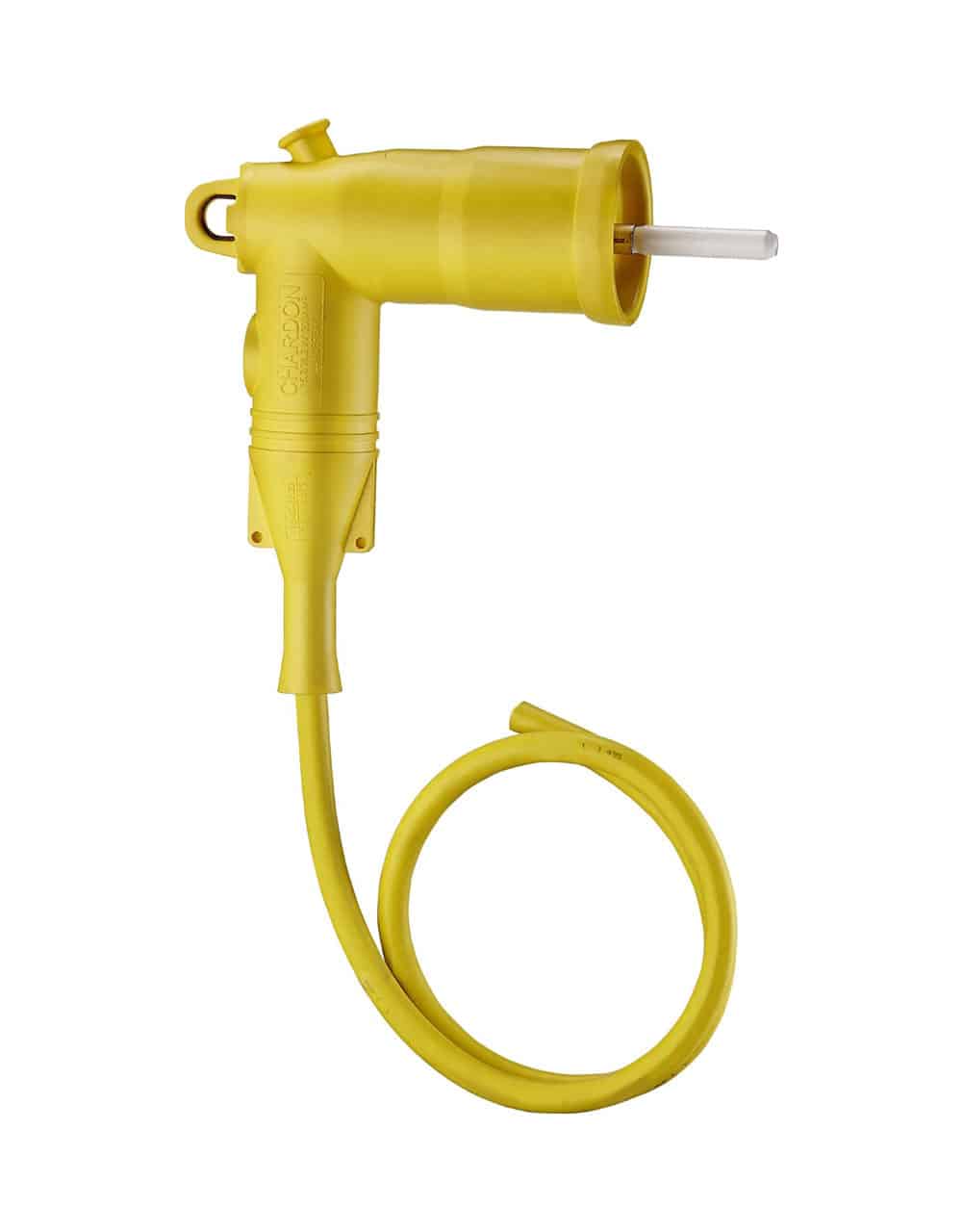

Grounding Elbow up to 35 kV, 200A (15-GLE200, 25-GLE200, 35-GLE200)

Product Code:  GLE200

The Chardon 15 kV, 25 kV & 35 kV Grounding Elbow provide a circuit between energized and non-energized sections of the distribution line. The grounding elbow can be assembled on the loadbreak bushing insert, feed thru Insert or junction of a pad mounted transformer or other apparatus.

The Grounding Elbow can be used by itself or with a compatible rated feed thru to visibly ground cables, transformers and switchgear. The Grounding Elbows are designed to mate with 200 A loadbreak bushings and accessories with compatible voltage ratings.
