24 kV, 250A Deadbreak Bushing Insert(24-DBI250)

Product Code: 24-DBI250

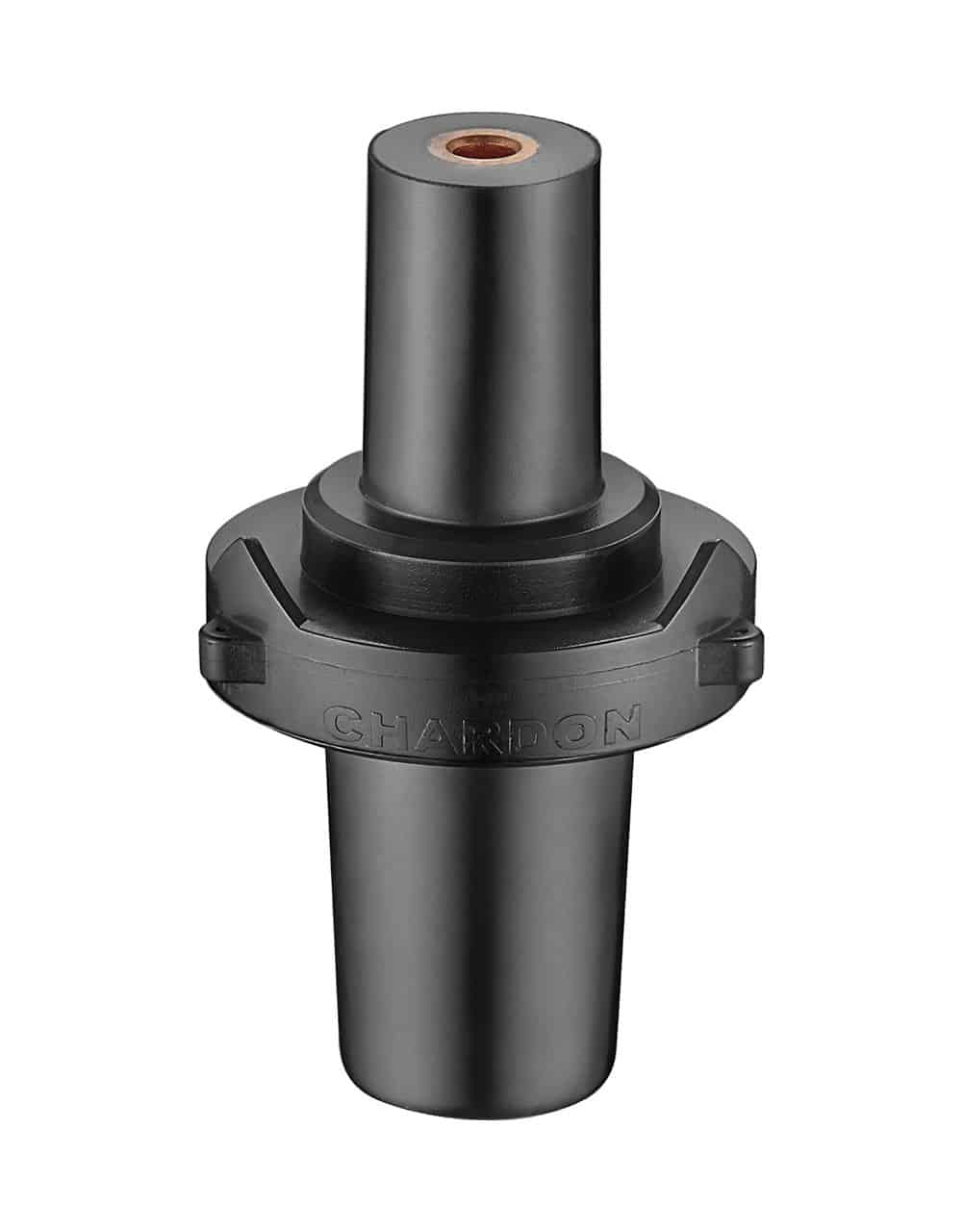

The Chardon Deadbreak Bushing Insert threads into a standard 250A bushing well. It is a fully shielded, fully submersible separable connector designed for deadbreak operation. The Chardon Deadbreak Bushing Insert is suitable for 17.4/24 kV class systems and can be installed in transformers, switchgear or other apparatus when needed to connect with deadbreak connectors.

The Chardon Deadbreak Bushing Insert incorporates an all copper current path. This provides reliable and consistent performance under all conditions. The design meets all the requirements of HD629.1 , EN-50180 , EN50181 & IEC 60502, and is fully interchangeable with competitor’s products and all mating products that also meet EN-50180 & EN-50181.
