200A Bushing Well, up to 35 kV(CH200BW)

Product Code: CH200BW

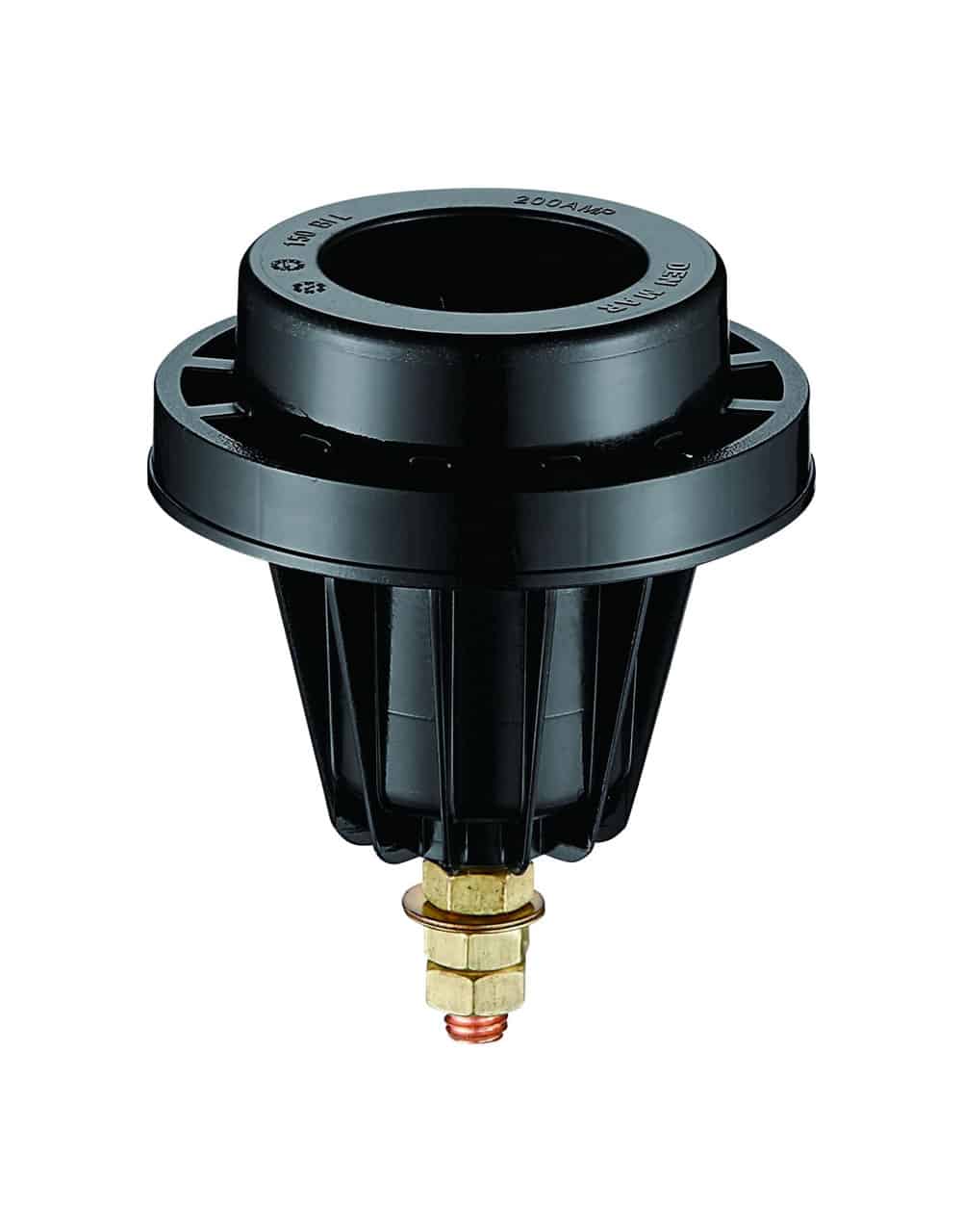

The Chardon 200A 15kV,25kV,28kV and 35kV Class bushing well meets all requirements of IEEE standard 386-1995 (separable insulated connector system).  It is designed for the termination of primary winding leads at the face plate of oil filled (or approved equivalents) single phase and three phase transformers and switchgear rated at 8.3/14.4kV, 15.2/26.3kV, 16.2/28.0 kV and 21.1/36.6 kV.  The Chardon bushing well is externally mounted and clamped in place with either stainless steel or galvanized mild steel 3 or 4 hole mounting clamps. It ts in a 2.56inch (65mm) hole on the apparatus tank wall. The Chardon bushing well is designed to accept Chardon bushing inserts, as well as all others meeting IEEE Standard 386.
