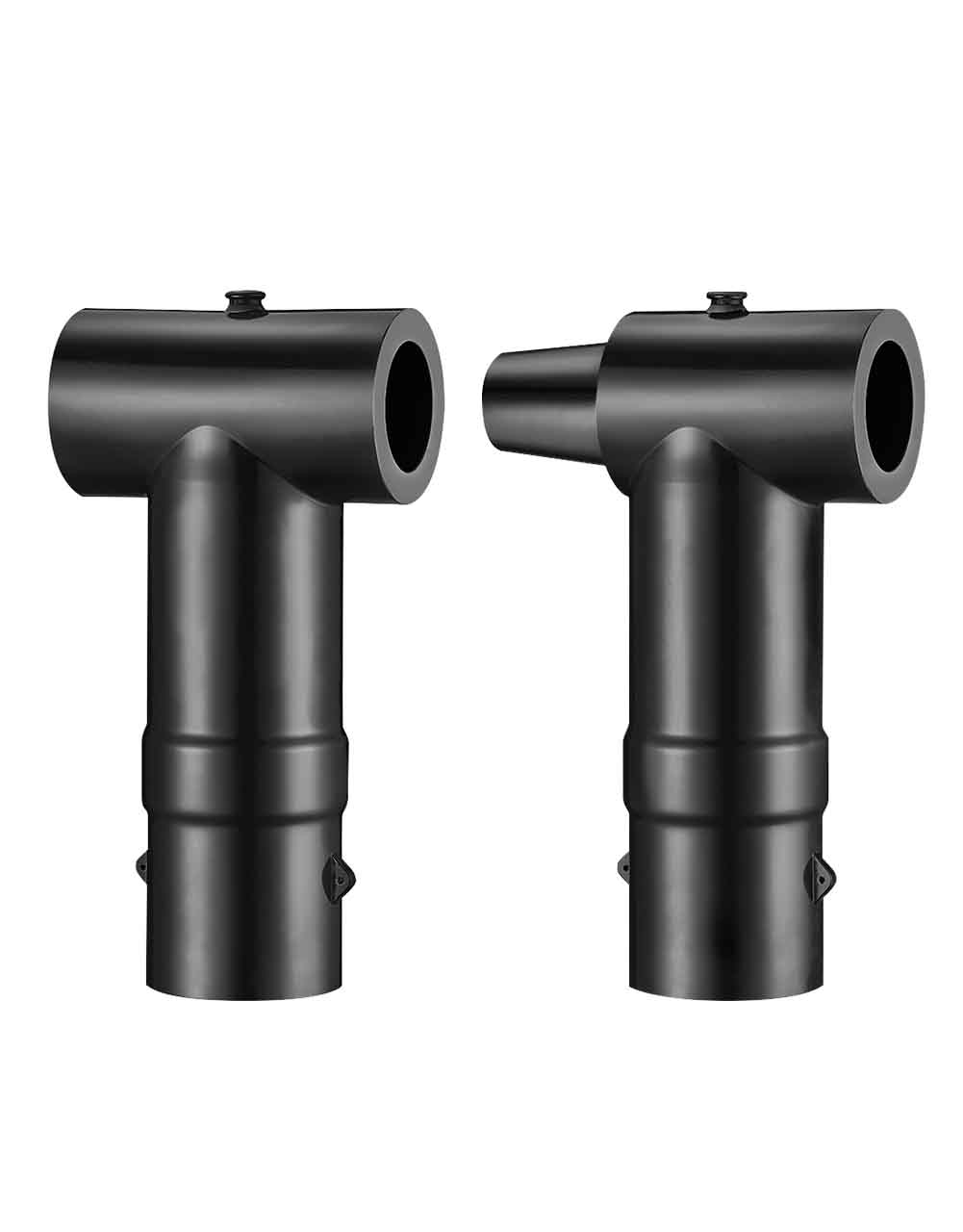

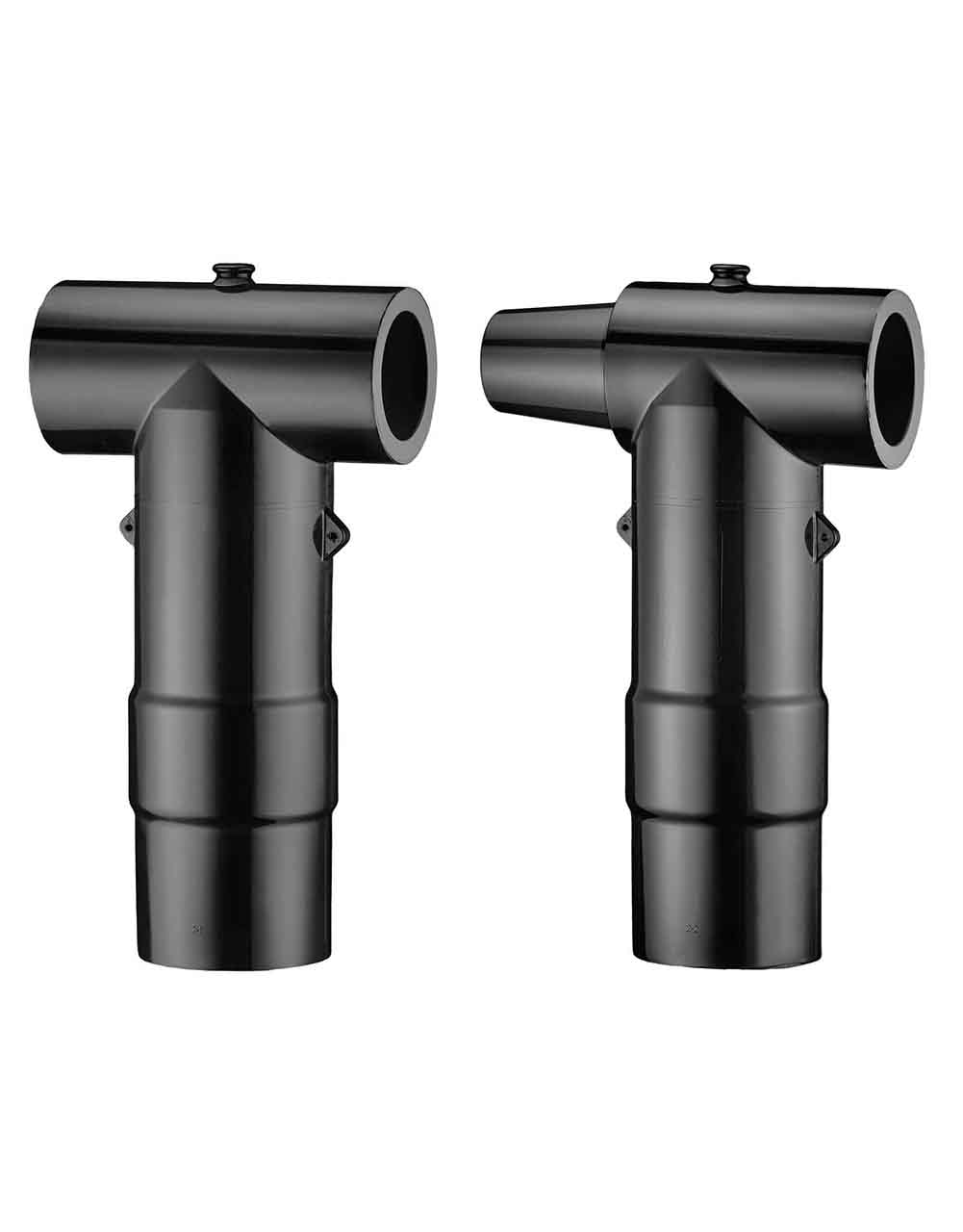

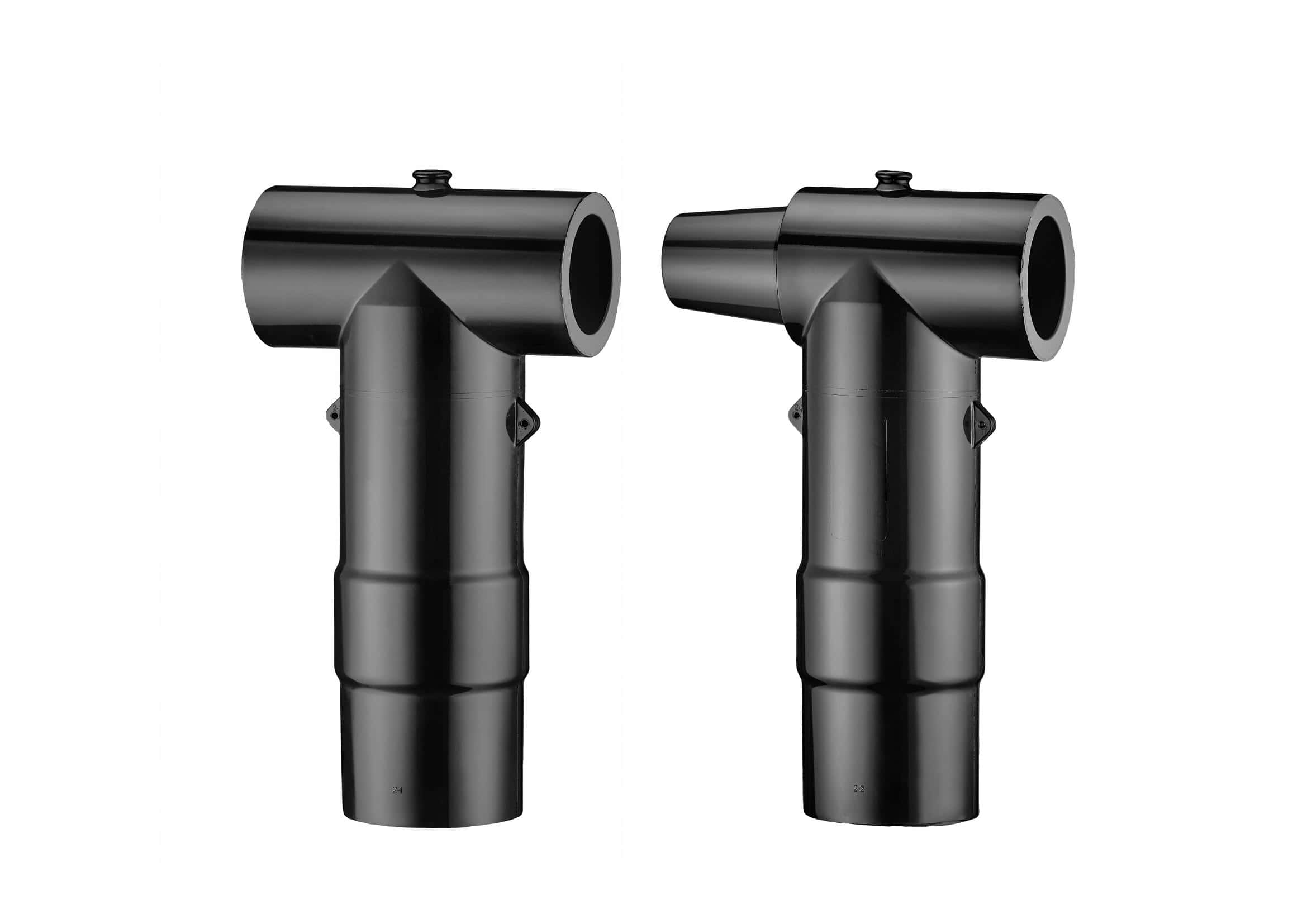

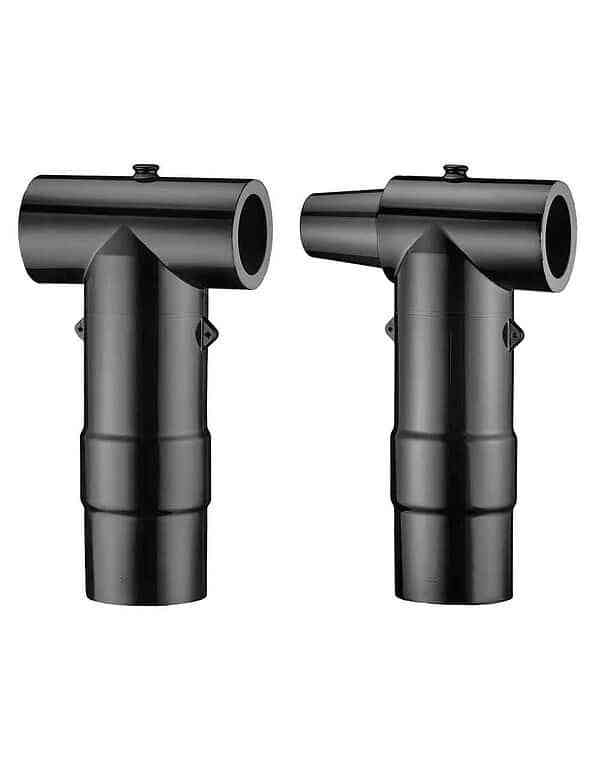

72.5 kV, 1250A T-body (72-FRDT1250)

Product Code: 72-FDT1250 / 72-RDT1250

Chardon front and rear T-Body Connectors are engineered to meet the evolving challenges faced in today’s high-power offshore wind applications. The Front T-Body and Coupling Rear T-Body Connectors are used to terminate polymeric cables to dead front apparatus like transformers, switchgear, and other equipment in these environments.
Designed for a 72.5 kV interface, these connectors are compatible with all types of polymeric cables, including XLPE and ETP, and are capable of accommodating both copper and aluminum conductors. Additionally, the T-body surge arrester provides an added layer of protection for rear (coupling) connections when interfacing with the front 72.5 kV, 1250A T-body.
Completely screened and fully submersible when connected with suitable bushings or plugs, Chardon T-Body Connectors are well-suited for both indoor and outdoor applications. Their design excels in harsh offshore environments and wind farms, where the need for long cable runs and large cable sizes are required. Whether you’re dealing with the challenges of offshore winds or the rigors of a power grid, our connectors offer a reliable solution for your power distribution needs.

Download resources
