630A, 1250A T-Body, up to 36 kV (Wide Range)

630A, 1250A T-Body, up to 36 kV (Wide Range)

Categories: ,

Product Code: 24-FDT630 / 24-RDT630 ; 36-FDT630 / 36-RDT630 ; 24/36-LFDT1250 / 24/36-LRDT1250

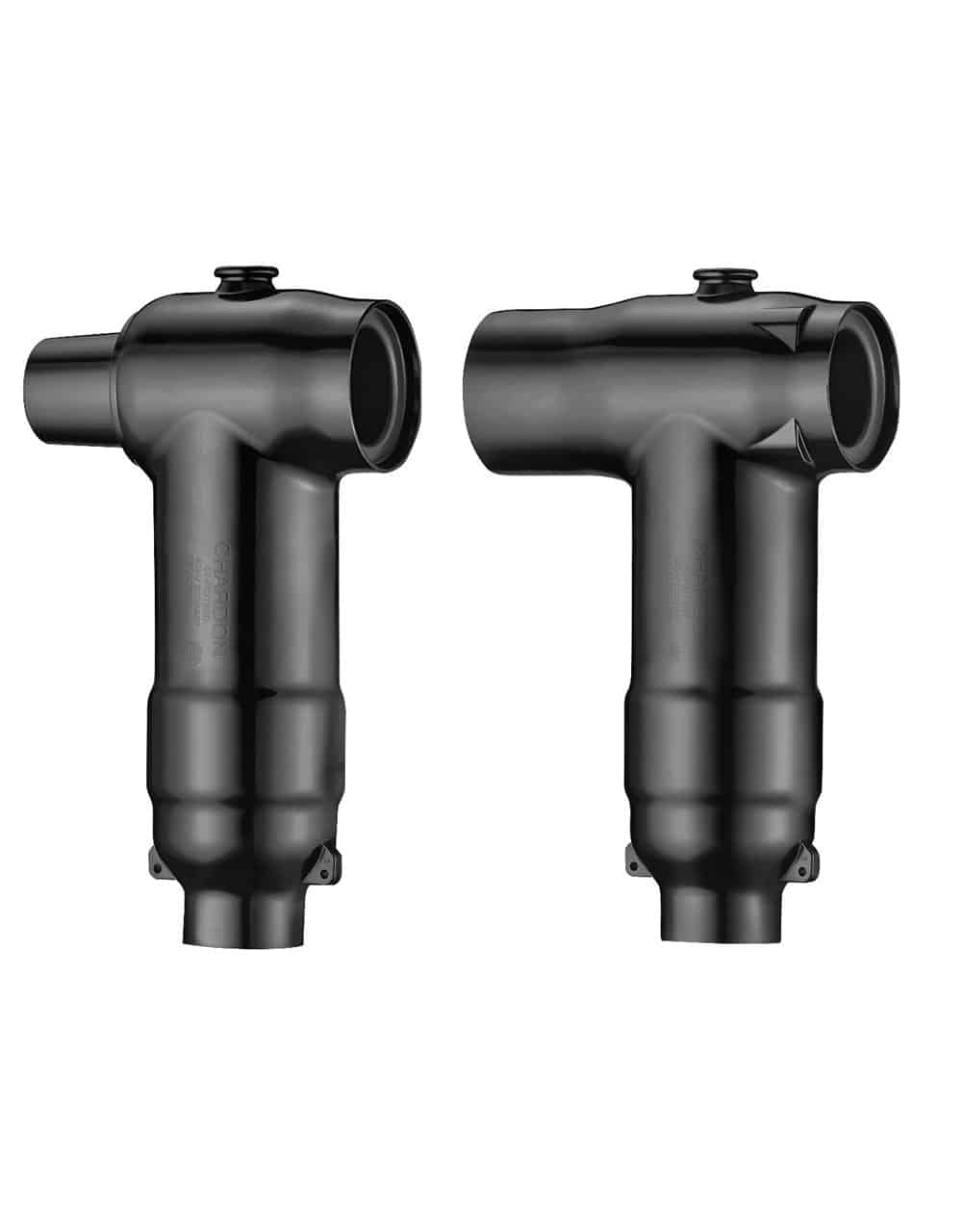

The Chardon T-Body Connectors are designed to integrate polymeric cables into dead front apparatus such as transformers, switchgear, and other critical equipment, meeting the electrical standards set by IEC 60502 & HD 629. Suitable for both indoor and outdoor applications, these connectors comply with the interface requirements of EN 50180 and are compatible with all polymeric cable types and conductors made of either copper or aluminum. With an operational voltage capacity of up to 36 kV, these connectors are equipped with high-performance adapters that allow for an extensive range of compatibility with various cable sizes.

Download resources

 24 kV, 630A Front & Rear T-Body (Wide Range Adapter) – Installation Instructions

1. For AULZ series lugs:

2.  For SBC-B Series lugs):
