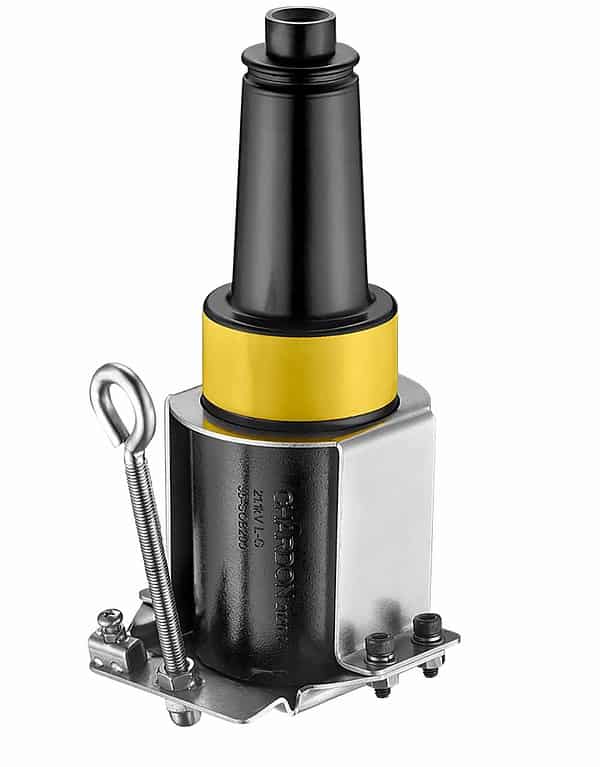

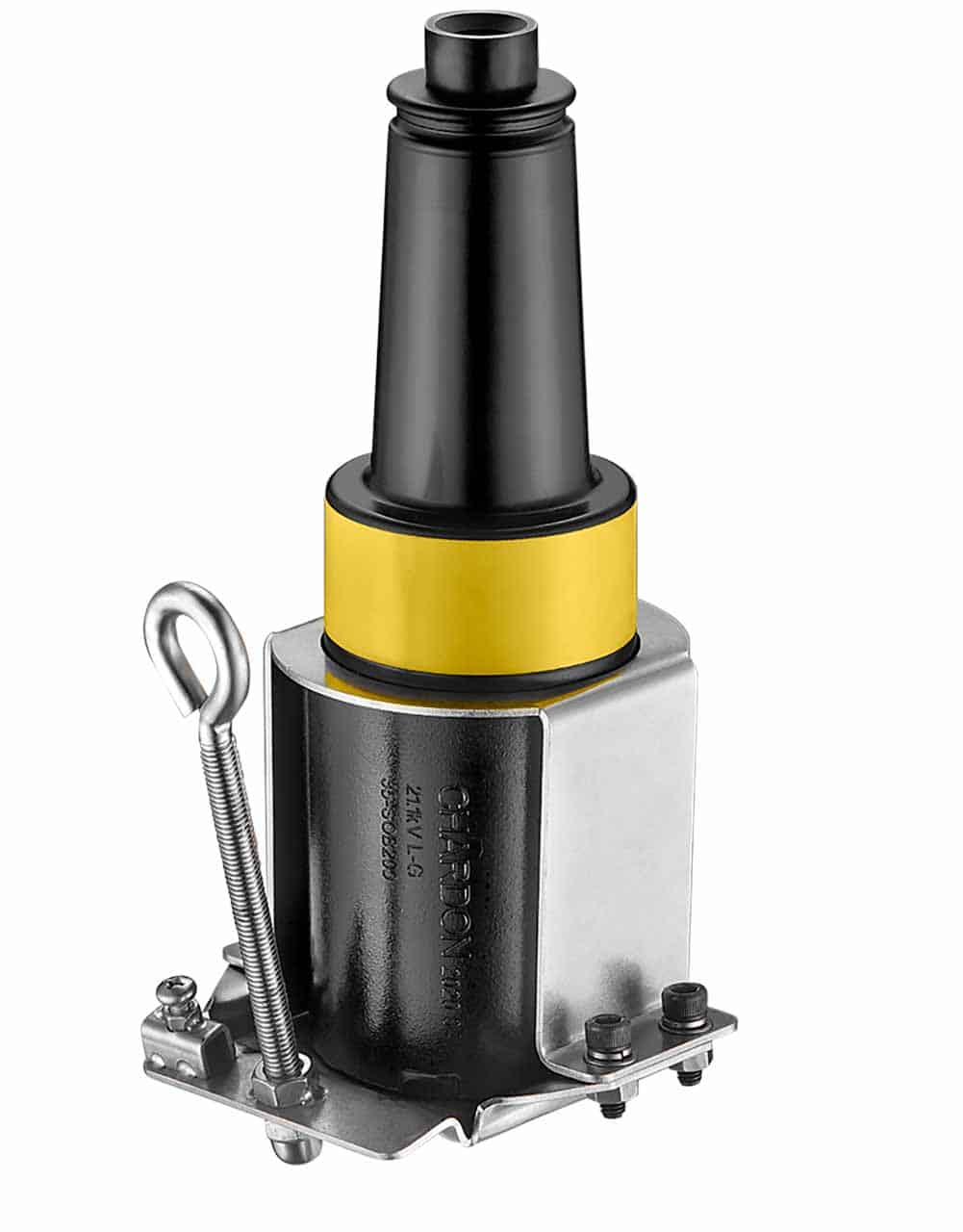

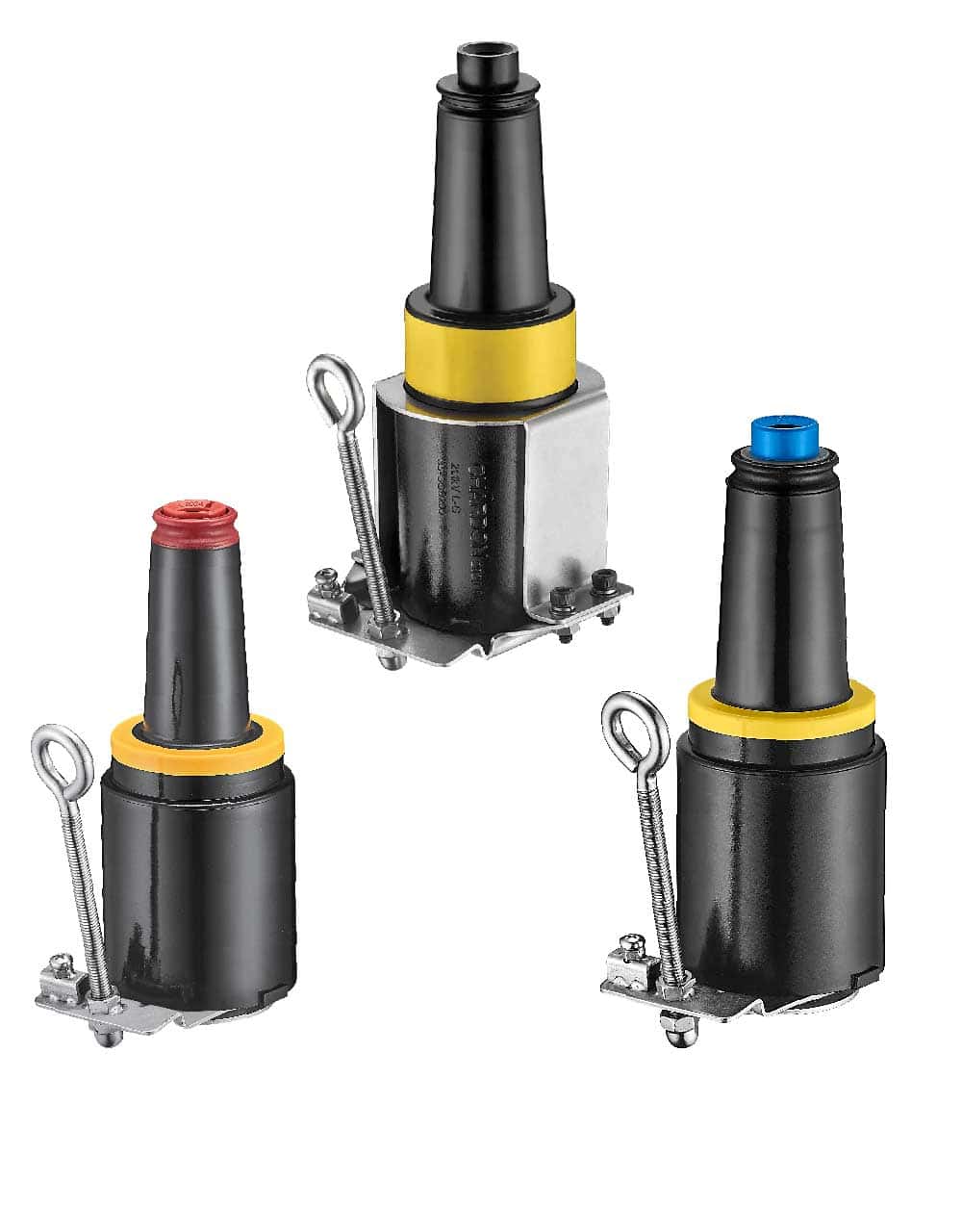

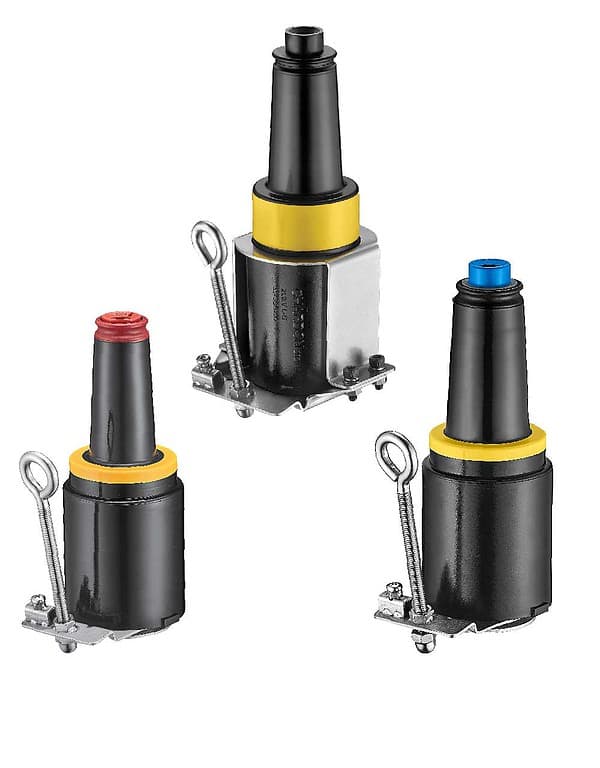

15, 25 & 35 kV, 200A Loadbreak Insulated Standoff Bushing(SOB200)

Product Code:
15-SOB200
25-SOB200
35-SOB200

The Chardon Insulated Standoff Bushing, available in 15 kV, 25 kV, and 35 kV, meets the IEEE 386 standards. Made of quality peroxide-cured EPDM rubber, it provides a reliable loadbreak interface. In the feld, it aids in isolating energized cables and allows both temporary and permanent parking of loadbreak elbows aligned with IEEE 386. When mated with similarly rated products, it serves as a fully-shielded, submersible separable connector. Built with a stainless steel eyebolt and base bracket, it’s suitable for mounting on the apparatus parking stand.
