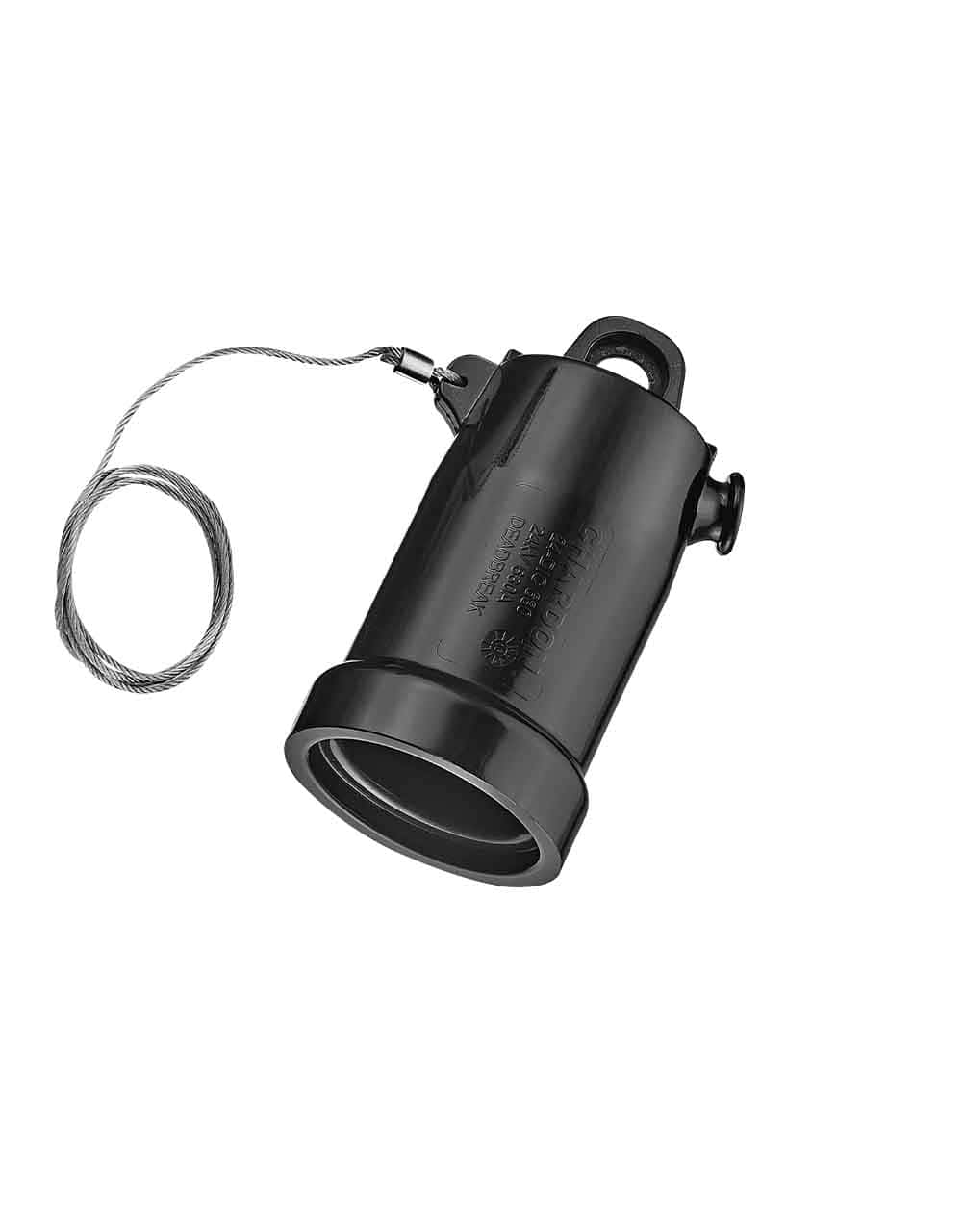

24kV, 630A Insulated Protective Cap(24-DIC630)

Product Code: 24-DIC630

The Chardon 24kV 630A Insulated Protective Cap can be used for temporary or permanent applications and provides a submersible, fully shielded insulated cap for energized bushings. When installed on a IEC bushing interface or junctions, it is properly grounded using the attached drain wire, and providing physically seal and electrically insulate bushing  interfaces. The Chardon insulated cap design incorporates peroxide cured, EPDM insulation rubber, and a semi-conducting insert and outer shield.
