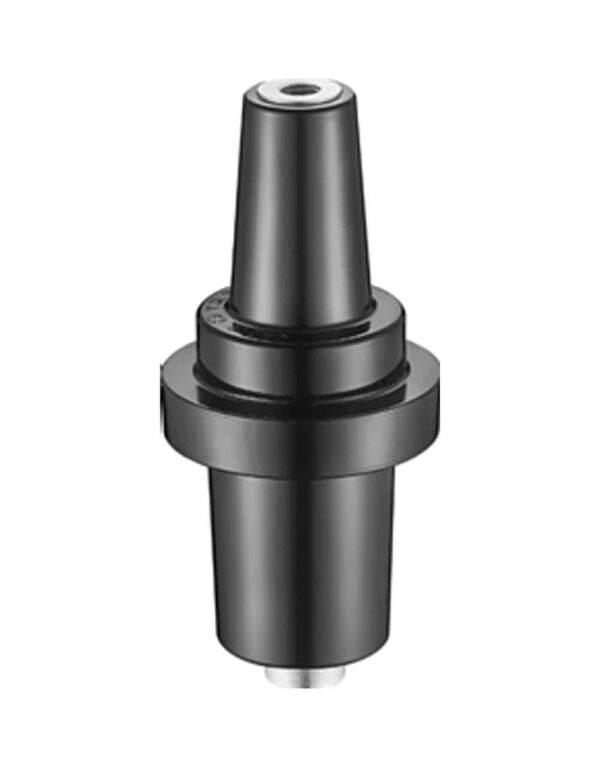

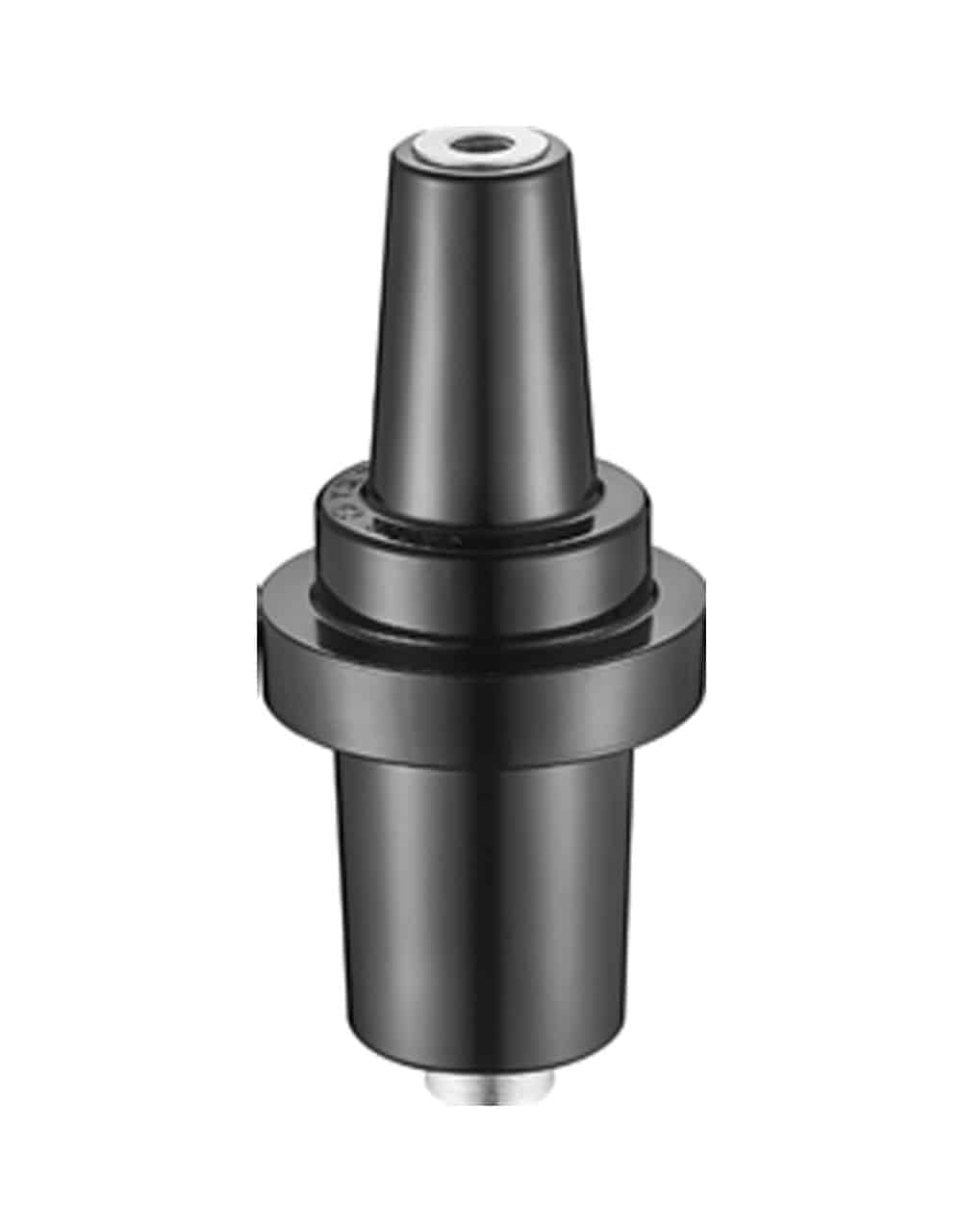

15/25 kV, 600A Apparatus Bushing(15/25-AB600)

Product Code: 15/25-AB600

The Chardon 15/25kV 600A Apparatus Bushing meets all requirements of IEEE Standard 386-2016 (separable insulated connector system). It is designed for the termination of primary winding leads at the face plate of SF6 oil (or approved equivalents) single phase and three phase transformers and switchgear rated a t 8.3/14.4kV, 15.2/26.3kV. The bushing is externally mounted and clamped in place with stainless steel 4 hole mounting clamps.
