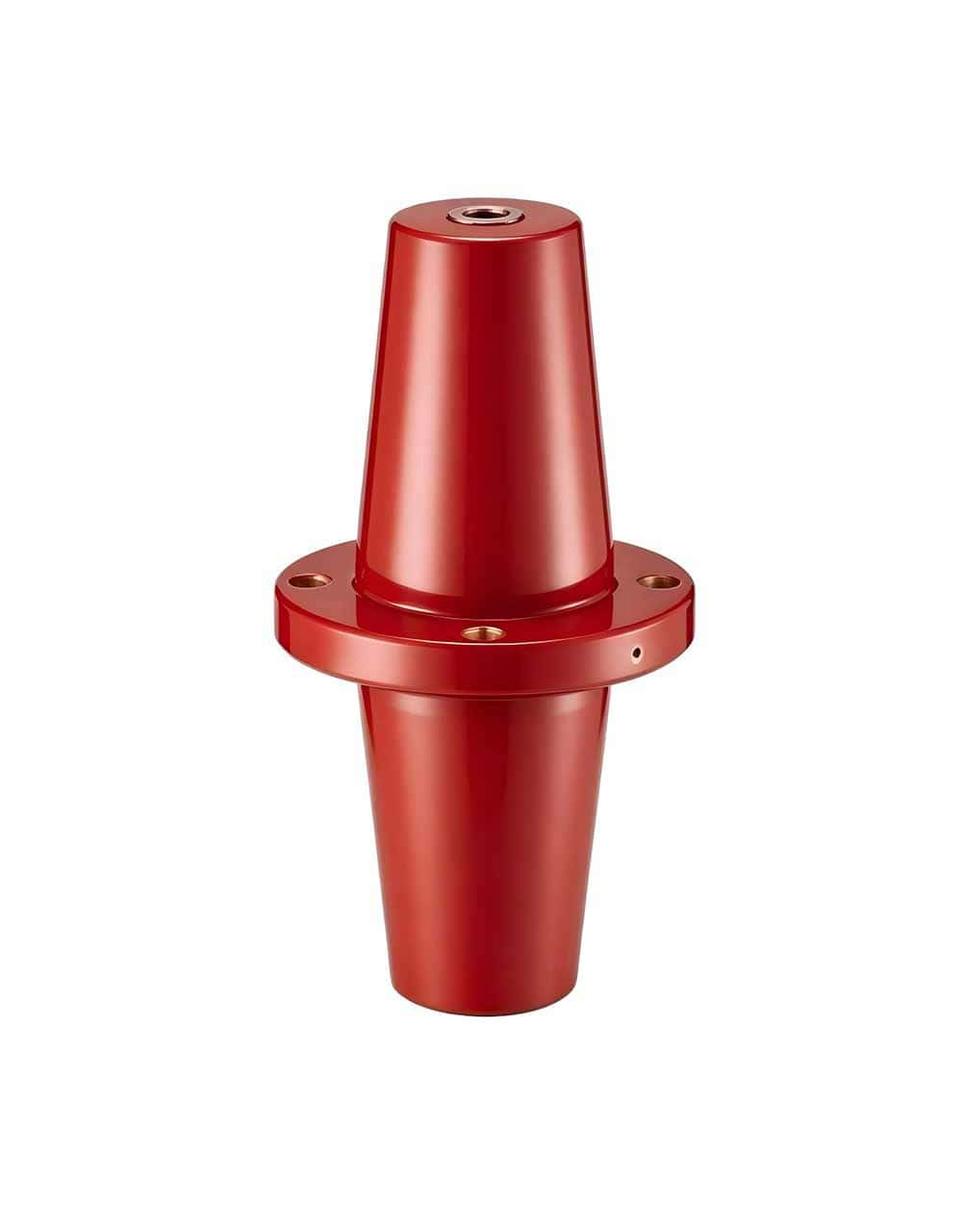

F界面连接插头 (72-TCP630, 72-TCP1250)
訂貨號: 72-TCP630,72-TCP1250
Chardon 連接插頭是由高品質的絕緣環氧材料製成。它可以安裝在接線盒或其他設備中，並與T體連接器和避雷器一起使用。該產品完全絕緣且可浸入水中，旨在滿足水下應用的功能需求。
文檔
訂貨號: 72-TCP630,72-TCP1250
Chardon 連接插頭是由高品質的絕緣環氧材料製成。它可以安裝在接線盒或其他設備中，並與T體連接器和避雷器一起使用。該產品完全絕緣且可浸入水中，旨在滿足水下應用的功能需求。
文檔
Input your cable specs below to instantly generate the exact Chardon part number for your quotation.
Quickly estimate your diameter over insulation based on our global market database.
Value copied to the Selector automatically!
The conductor cross-section (e.g., 95 mm²) is standardized and almost always printed on the cable jacket or listed in datasheets. However, cables with the exact same conductor can have vastly different Insulation Outer Diameters depending on their voltage class and the manufacturer's design.
While some catalogs provide the nominal Insulation O.D., manufacturing tolerances mean the real diameter can differ. That is why verifying the exact dimension using an appropriate tool, such as a caliper, is highly recommended before specifying your medium voltage accessory.
The accessory body (adapter or cold shrink) stretches over the insulation. A precise interference fit is critical to eliminate air gaps and control the electric field.
Requires exact Insulation O.D. (mm)
The internal connector (compression or shear-bolt) must perfectly match the core to safely carry the electrical current without overheating.
Requires exact Conductor Size (mm²)
