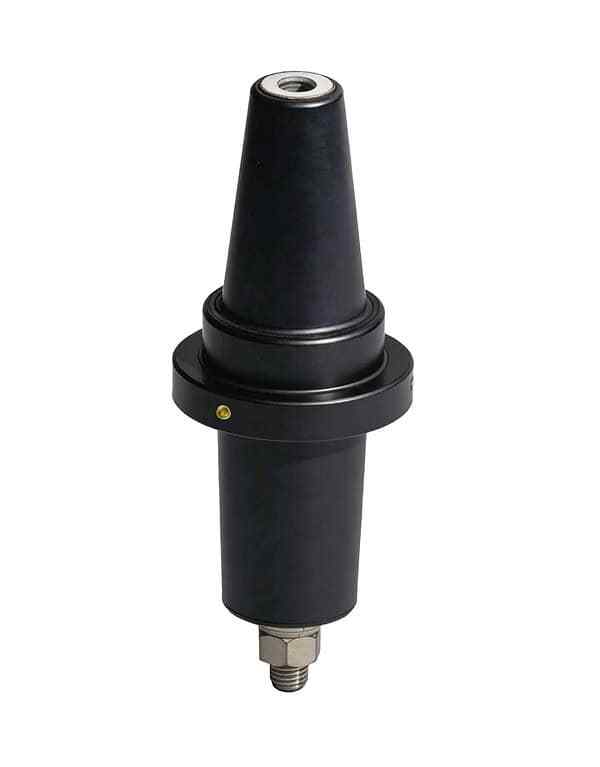

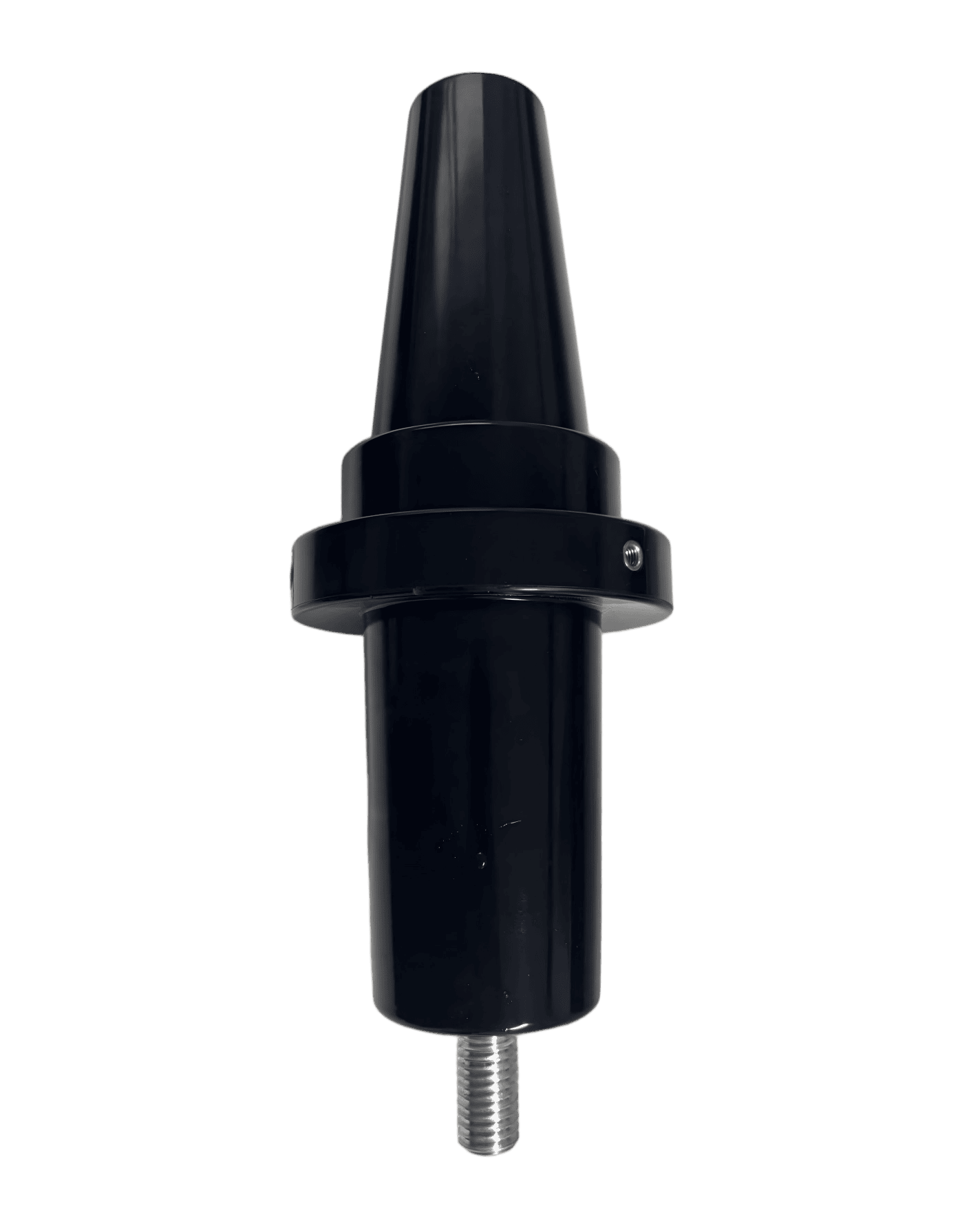

35 kV, 600A 900A设备套管(35-AB600/900)
订货号: 35-AB600/900
Chardon 35kV 600A 900A设备套管符合 IEEE 标准 386-2016（可分离绝缘连接器系统）的所有要求。它设计用于在 SF6 油（或经批准的等效物）单相和三相变压器以及额定 t 21.1kV/35kV 的开关设备面板处端接初级绕组引线。衬套在外部安装并用不锈钢 4 孔安装夹固定到位。
文档
订货号: 35-AB600/900
Chardon 35kV 600A 900A设备套管符合 IEEE 标准 386-2016（可分离绝缘连接器系统）的所有要求。它设计用于在 SF6 油（或经批准的等效物）单相和三相变压器以及额定 t 21.1kV/35kV 的开关设备面板处端接初级绕组引线。衬套在外部安装并用不锈钢 4 孔安装夹固定到位。
文档
Input your cable specs below to instantly generate the exact Chardon part number for your Purchase Order.
Quickly estimate your diameter over insulation based on our global market database.
Value copied to the Selector automatically!
The conductor cross-section (e.g., 95 mm²) is standardized and almost always printed on the cable jacket or listed in datasheets. However, cables with the exact same conductor can have vastly different Insulation Outer Diameters depending on their voltage class and the manufacturer's design.
While some catalogs provide the nominal Insulation O.D., manufacturing tolerances mean the real diameter can differ. That is why verifying the exact dimension using an appropriate tool, such as a caliper, is highly recommended before specifying your medium voltage accessory.
The accessory body (adapter or cold shrink) stretches over the insulation. A precise interference fit is critical to eliminate air gaps and control the electric field.
Requires exact Insulation O.D. (mm)
The internal connector (compression or shear-bolt) must perfectly match the core to safely carry the electrical current without overheating.
Requires exact Conductor Size (mm²)
