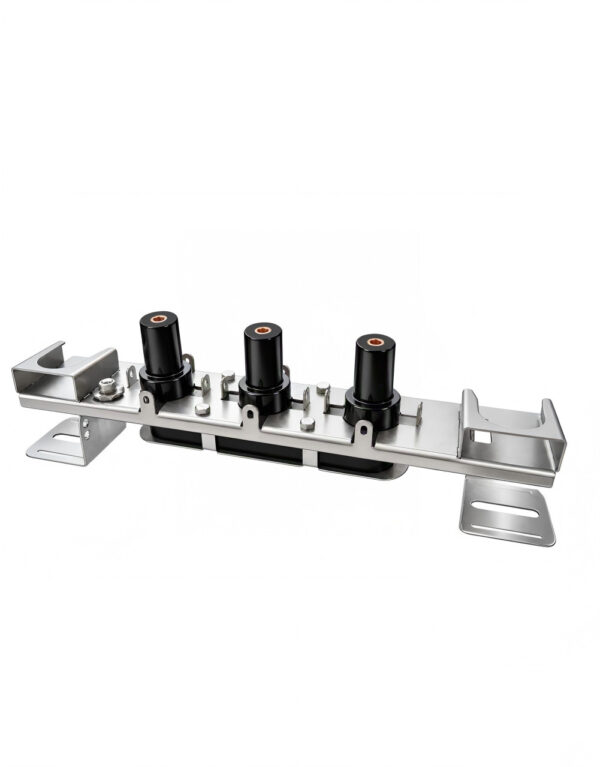

25 kV 200A 分歧插頭(25-DJ200 F3SS)
訂貨號: 25-DJ200 F3SS
CHARDON 25 kV 200A 負載不可切分歧插頭 ，提供了三路的介面選擇，產品由EPDM製成，可以使用於開關箱、電路分歧處、地下電路等；產品使用雙頭螺栓與本體連接，當與其他接頭組裝時，可以提供完整的遮蔽及防水功能；介面設計符合IEEE 386 規範，可與其他符合386規範的產品組裝使用，產品固定可選用鐵架或是U型固定片來安裝。
文檔
- 下載型錄
- 下載施工説明書
訂貨號: 25-DJ200 F3SS
CHARDON 25 kV 200A 負載不可切分歧插頭 ，提供了三路的介面選擇，產品由EPDM製成，可以使用於開關箱、電路分歧處、地下電路等；產品使用雙頭螺栓與本體連接，當與其他接頭組裝時，可以提供完整的遮蔽及防水功能；介面設計符合IEEE 386 規範，可與其他符合386規範的產品組裝使用，產品固定可選用鐵架或是U型固定片來安裝。
文檔
Input your cable specs below to instantly generate the exact Chardon part number for your quotation.
Quickly estimate your diameter over insulation based on our global market database.
Value copied to the Selector automatically!
The conductor cross-section (e.g., 95 mm²) is standardized and almost always printed on the cable jacket or listed in datasheets. However, cables with the exact same conductor can have vastly different Insulation Outer Diameters depending on their voltage class and the manufacturer's design.
While some catalogs provide the nominal Insulation O.D., manufacturing tolerances mean the real diameter can differ. That is why verifying the exact dimension using an appropriate tool, such as a caliper, is highly recommended before specifying your medium voltage accessory.
The accessory body (adapter or cold shrink) stretches over the insulation. A precise interference fit is critical to eliminate air gaps and control the electric field.
Requires exact Insulation O.D. (mm)
The internal connector (compression or shear-bolt) must perfectly match the core to safely carry the electrical current without overheating.
Requires exact Conductor Size (mm²)
